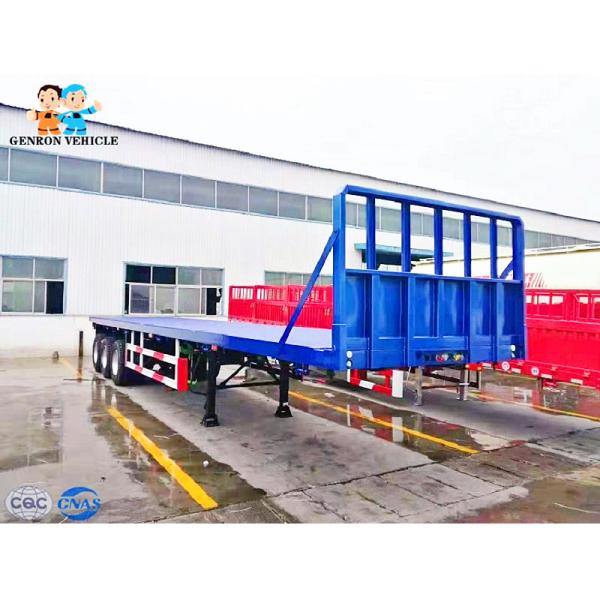

Bulk Cargo Transport Flat Bed Semi Trailer Container Semi Traielr Sale In Uganda
-It mainly used for long-distance freight transport& 20ft 40ft container.
-It has 12 twist lock for 20ft&40ft container.
-High-strength international steel is used for the flatbed semi trailer walking structure;The vehicle has a light dead weight, and ensures its anti-distortion, anti-seismic, anti-turbulence ability, to meet different road loading capacity.
-Leaf spring suspension system support composition, reasonable structure, with strong rigidity and strength, used to support the load gentle impact.
-It can be designed as customer's requirements.
We adopt e-coating process,complete chassis of container semi trailer is sand blasted to clean rust,1 coat of anticorrosive prime, 2 coats of final paint.Make sure 7 years not drop paint,and not lose varnish.
| Product Name | Bulk Cargo Transport Flat Bed Semi Trailer Container Semi Traielr Sale In Uganda |
| Key Word | Container Semi Trailer |
| Tare Weight | About 7.1T |
| Outer Side Dimension | 12450mm*2490mm*1575mm |
| Loading Capacity | ≤ 45 T |
| Bottom Platform | 3mm diamond steel plate |
| Axle | 13 T, FUWA /BPW /GV Brand |
| Rim | 9.00-22.5 9.75-22.5(special for export market ) |
| Tire | 12.00R22.5 315/80R22.5 (special for export market ) |
| Suspension | Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand ) (special for export market ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support Leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main Beam | Height: 500mm,.upper plate is 14mm, middle plate is 8mm, down plate is16mm(thickness),material is Q345B steel. |
| Side Beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Brake Chamber | T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
| ABS | Optional |
| Twist Locks | Optional;Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7ways(7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
Shipping Item : A & B
A:
This package for roro ship or bulk cargo ship delivery .
If your order is more than three units or 6 or 9 can be package like this .
Pls check your destination port if there is bulk cargo port near to your city.
Disadvantage : the bulk cargo fee is a little expensive than the container fee.
Advantage: no need welding ,can be work directly after you received.
B:
If your order is two units container semi trailer or double pieces you can choose put two units into one 40HQ container for shipping ,
we will design one tail part connected by strong bolts ,after you received the trailer you should connecting them by strong bolts first and then welding the two parts together ,Its easily work for welding man.
